CNC machining is one of the most widely used methods for prototyping and manufacturing, allowing for precise and high-quality results. However, choosing the right material for CNC prototypes is crucial to ensure durability, functionality, and cost-effectiveness. Whether you’re developing a new product, testing a concept, or creating a functional part, selecting the ideal material can significantly impact performance and production efficiency.
In this guide, we will explore the key factors to consider when choosing a material for CNC prototypes, including strength, cost, machinability, and application-specific properties.
What is CNC Prototyping?
CNC (Computer Numerical Control) prototyping involves using automated machinery to produce prototypes from a wide range of materials, including metals and plastics. This process enables precise cutting, shaping, and finishing, making it a preferred choice for industries such as aerospace, automotive, medical, and consumer electronics. CNC prototypes serve various purposes, from concept validation to functional testing, allowing manufacturers to refine designs before mass production.
Comparison of Common CNC Prototyping Materials
Below is a comparison table outlining some of the most commonly used materials for CNC prototypes and their characteristics :
| Material | Strength | Machinability | Cost | Weight | Corrosion Resistance |
|---|---|---|---|---|---|
| Aluminum | Medium | High | Moderate | Light | High |
| Stainless Steel | High | Moderate | High | Heavy | Very High |
| Brass | Medium | High | High | Moderate | High |
| ABS Plastic | Low | Very High | Low | Light | Low |
| PEEK | High | Moderate | Very High | Light | Very High |

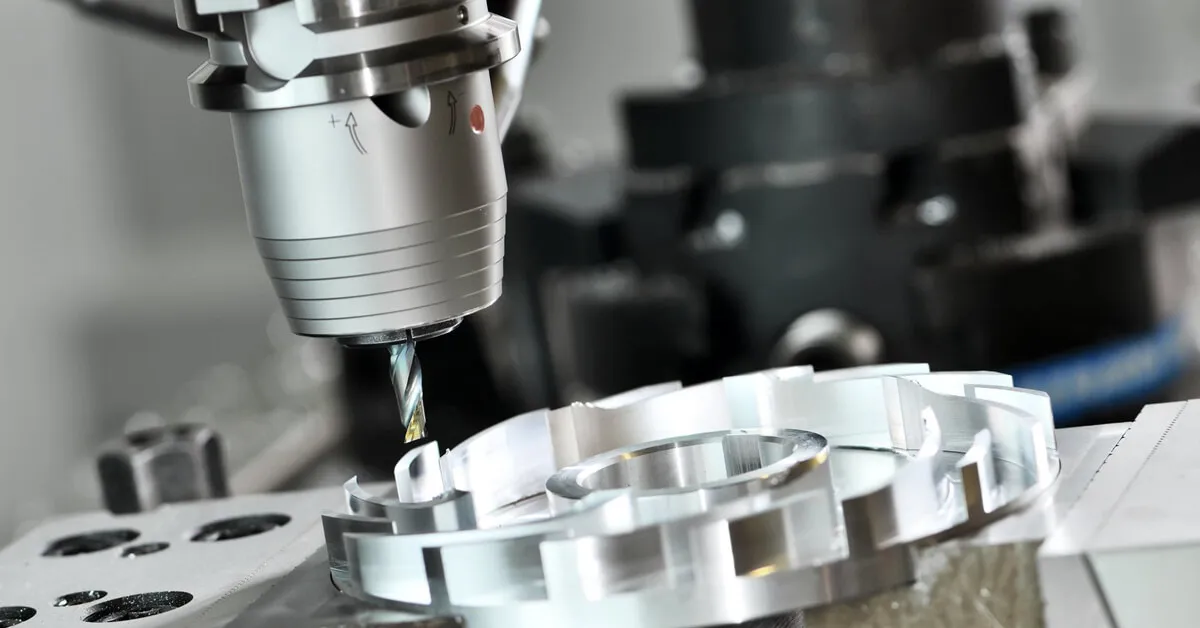

Factors to Consider When Selecting CNC Prototype Materials
When selecting a material for CNC prototypes, several factors should be considered. The mechanical properties of a material determine its strength, durability, and resistance to environmental conditions.
Recommended : What to Know Before Starting CNC Prototype Machining
1. Mechanical Properties
It plays a crucial role in determining the strength, durability, and overall performance of the prototype. Key properties to consider include tensile strength, which indicates how much force the material can withstand before breaking, and hardness, which defines the material’s resistance to wear and tear. Flexibility and impact resistance are also critical, especially for parts that must absorb shocks or vibrations without cracking.
2. Machinability
The machinability of the material is another factor that can significantly influence the production process. Materials that are easier to machine, such as aluminum, tend to reduce production time and costs, while harder materials like stainless steel may require specialized tools and longer processing times. This can affect both the speed of prototyping and the overall cost.
3. Cost and Budget Considerations
Cost considerations are always at the forefront of decision-making. While high-performance metals like titanium or stainless steel offer excellent durability, they may be excessive for prototypes that don’t need to withstand extreme conditions. On the other hand, materials like aluminum or certain plastics can provide a good balance of performance and cost-effectiveness for many prototyping needs.
4. Weight and Density
In industries like aerospace and automotive, weight and density are crucial considerations. Lightweight materials can improve efficiency and reduce the overall weight of the finished product, making them preferable for applications that demand high-performance levels without adding unnecessary bulk. For example, lightweight alloys or composites might be the best choice for a prototype in these industries.
5. Thermal and Chemical Resistance
It is another factor to consider, especially if the prototype will be exposed to extreme temperatures or harsh chemicals. Materials such as stainless steel and high-performance plastics like PEEK offer excellent resistance to heat, corrosion, and chemicals, making them ideal for environments where these factors are a concern.
6. Aesthetic and Surface
The aesthetic and surface finish requirements also play a significant role in material selection. Some prototypes need a smooth, polished surface or must be easily painted or coated for appearance or functionality. Materials like ABS plastic or aluminum are commonly chosen for their ability to achieve a clean, finished look without extensive additional treatments.
7. Application-Specific Needs
It must be the ultimate guiding factor. For instance, if the prototype is for the medical industry, biocompatibility is essential, so materials like medical-grade plastics or metals would be needed. Similarly, automotive prototypes must endure high stress and temperature fluctuations, requiring materials with exceptional strength and durability.
Taking all of these factors into account will help ensure that the selected material is optimal for the prototype’s function, production process, and budget.
Industry-Wise CNC Prototyping Material Requirements
| Industry | Commonly Used Materials | Key Requirements |
| Aerospace | Aluminum, Titanium, Carbon Fiber, PEEK | Lightweight, high strength, corrosion & heat resistance |
| Automotive | Aluminum, Stainless Steel, Nylon, ABS | Durability, impact resistance, heat resistance |
| Medical | Stainless Steel, Titanium, PEEK, ABS | Biocompatibility, sterilization resistance, precision |
| Electronics | Aluminum, Brass, ABS, Polycarbonate | Electrical conductivity, lightweight, insulation |
| Industrial Equipment | Stainless Steel, Brass, Nylon, Glass-Filled Nylon | High durability, wear resistance, corrosion resistance |
| Consumer Products | ABS, Polycarbonate, Aluminum, Acrylic | Aesthetic appeal, lightweight, cost-effective |
| Defense & Military | Titanium, Inconel, Kevlar, Carbon Fiber | Extreme durability, impact resistance, high heat tolerance |
Best Materials for Different CNC Prototypes Applications
When choosing materials for CNC prototypes, it’s essential to consider the specific requirements of the application, as different materials offer distinct advantages in terms of strength, weight, cost, and durability.
Metal CNC prototypes often require careful selection based on the environmental conditions and mechanical demands. Aluminum is a popular choice due to its lightweight nature and excellent corrosion resistance, making it suitable for industries like automotive, aerospace, and consumer electronics, where reduced weight and durability are paramount. Its ability to resist rust and corrosion also makes it an excellent material for outdoor or moisture-exposed applications.
Stainless steel stands out for its superior strength, heat resistance, and corrosion resistance. These qualities make it ideal for high-stress applications such as medical devices, industrial machinery, and parts that operate under extreme temperatures. Brass, known for its electrical conductivity and aesthetic appeal, is often used in connectors, decorative items, and electronic components where both functionality and appearance matter.

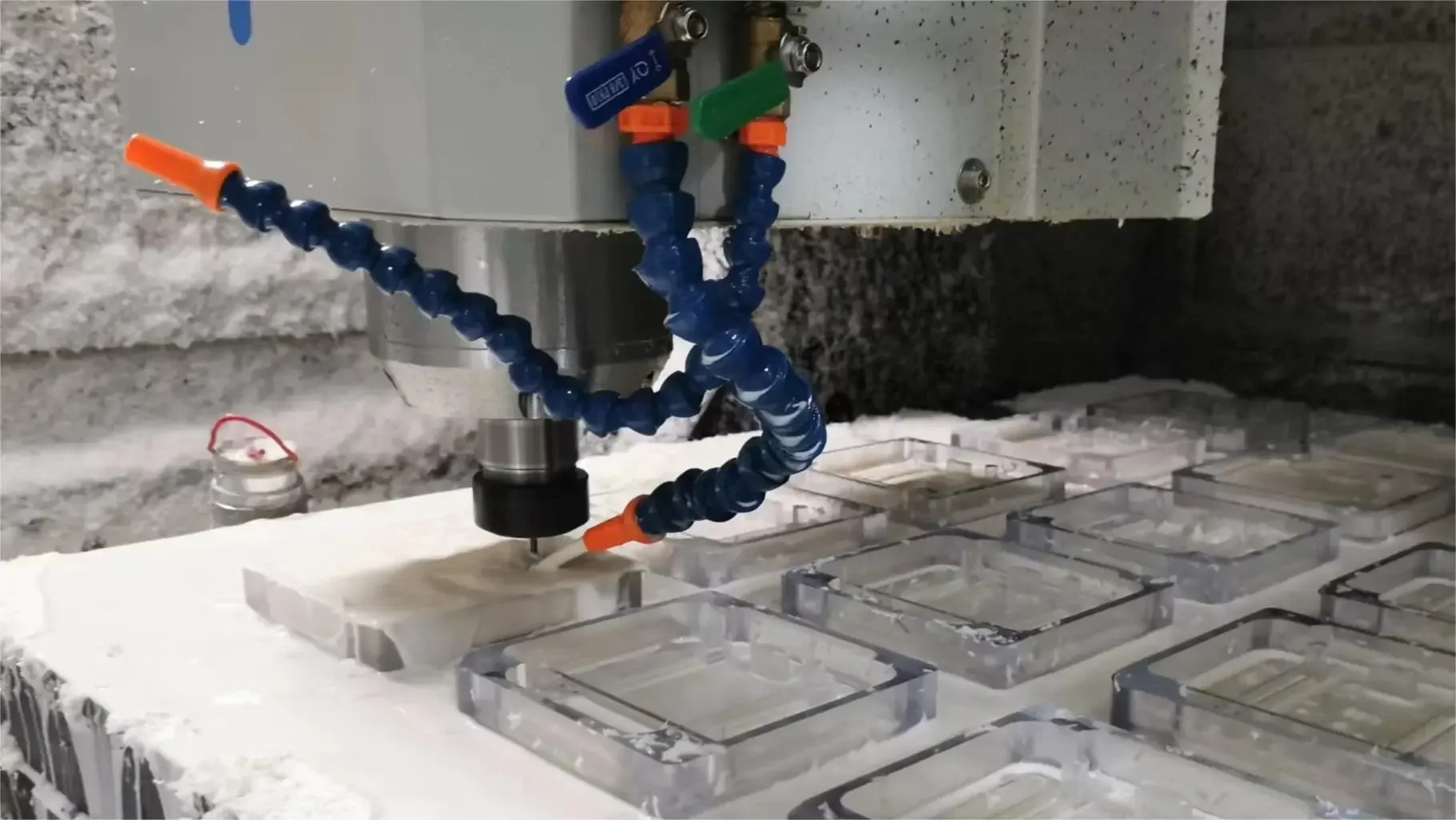

Plastic CNC Prototypes
For plastic CNC prototypes, materials like ABS offer an affordable and versatile solution for general-purpose prototyping. ABS is easy to machine, making it a common choice for items such as household goods, automotive parts, and prototypes that don’t require extreme heat resistance. In contrast, nylon is prized for its flexibility, impact resistance, and strength, making it ideal for functional prototypes like gears, bearings, and mechanical components subject to wear and tear. PEEK, a high-performance polymer, is perfect for applications requiring exceptional heat and chemical resistance. It is often used in aerospace, medical, and automotive industries, where components need to withstand harsh environments and high temperatures.
Composite materials take prototyping to the next level, offering high strength-to-weight ratios that are crucial for industries like aerospace and automotive. Carbon fiber, one of the most sought-after composites, is known for its remarkable strength while maintaining a low weight. This makes it ideal for high-performance applications such as aerospace components, automotive parts, and sporting goods, where minimizing weight while maximizing strength is critical.
Glass-filled nylon, a reinforced version of nylon, offers enhanced strength and stiffness, making it a perfect choice for heavy-duty industrial parts that require high durability without sacrificing the versatility of standard nylon. Other advanced composites like fiberglass and Kevlar provide additional strength, durability, and impact resistance, particularly in applications where protection against extreme conditions is necessary, such as in military, defense, and high-performance automotive sectors.
Ultimately, selecting the right material for CNC prototyping depends on the specific requirements of the project—whether it’s the need for lightweight durability, high strength, resistance to high temperatures, or specialized performance in extreme environments. Each material offers its own set of benefits, and understanding these differences allows manufacturers to make informed decisions to optimize performance, cost, and production efficiency for their prototypes.
How CNC prototyping can be optimized with advanced solutions
We specializes in providing high-quality CNC prototyping services with a range of material options to suit diverse applications. Whether you need precision machining, rapid prototyping, or bulk production, HanaV ensures expert material selection guidance, advanced CNC machining technology, cost-effective and timely production, and custom finishing options for enhanced aesthetics and functionality. If you need expert assistance in selecting the best material for your CNC prototype, HanaV is here to help. Contact 📞+91 9148785173 📧 sales@hanav.in 🌐 HanaV.in today to discuss your project and get a solution that meets your requirements.
Conclusion
Choosing the right material for CNC prototypes is a critical decision that influences performance, cost, and efficiency. By considering factors like mechanical properties, machinability, cost, and application-specific needs, you can make an informed decision. Metals like aluminum and stainless steel offer durability, while plastics like ABS and PEEK provide flexibility and lightweight solutions. Get started with HanaV’s CNC prototyping services now!
